Beginner-friendly explanation of side imaging vs down imaging for bass, kayak, and freshwater anglers.
Affiliate disclosure: This article contains affiliate links. If you buy through these links, The Anglers Hub may earn a commission at no extra cost to you. Our recommendations are research-based and built from manufacturer specifications, public product information, feature comparisons, pricing/value, installation requirements, upgrade paths, and use-case fit for bass, kayak, and beginner anglers.

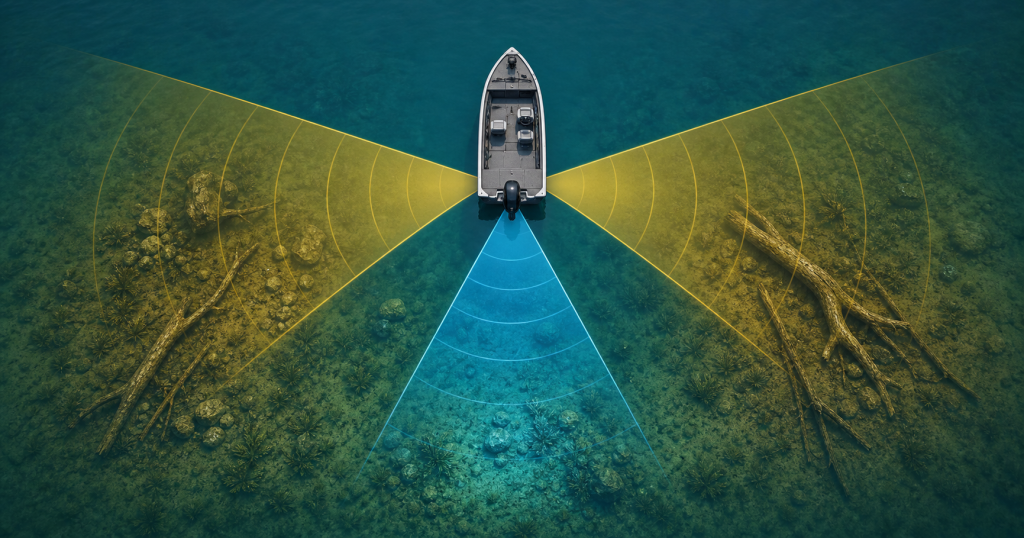

Side imaging and down imaging answer different questions. Down imaging shows a narrow, detailed view below the boat. Side imaging scans out to the sides so you can search banks, flats, points, and offshore structure without driving directly over everything.
Best For Side Imaging Buyers
Humminbird HELIX 7 CHIRP MEGA SI
Mid-premium
A strong value-focused example of why side imaging matters for structure anglers.
See Current PriceEvaluation Methodology
We compared fish finders by screen size, sonar type, mapping support, transducer requirements, installation complexity, power draw, networking and upgrade path, pricing, and suitability for bass fishing, kayak fishing, and beginner anglers. Product recommendations are based on specifications, public product information, feature tradeoffs, and use-case fit rather than undisclosed personal product use.
This explainer compares sonar views by practical fishing use: what each view shows, when each helps, what beginners misunderstand, and what installation choices affect image quality.
| Feature | Side Imaging | Down Imaging |
|---|---|---|
| nBest use | Searching wide areas | Confirming detail below boat |
| Bass fishing fit | Brush, rock, grass edges, roadbeds | Brush tops, dropoffs, bait below boat |
| Beginner difficulty | Higher learning curve | Easier to understand |
| Install sensitivity | Very sensitive to obstructions and angle | Still needs clean water but more forgiving |
Scroll horizontally on small screens to view all columns.
When Side Imaging Helps
Side imaging is most useful when you are searching. Bass anglers use it to find isolated cover, hard-bottom transitions, docks, grass edges, and offshore structure. It saves time because you do not need to drive directly over every target.
When Down Imaging Helps
Down imaging is best for confirming details under the boat: brush height, rock edges, bait balls, and whether fish are close to structure. It is especially useful after side imaging identifies a target.
Buying Advice
If you fish offshore structure, prioritize side imaging. If you fish shallow ponds, small rivers, or simple kayak trips, down imaging plus CHIRP may be enough. Compare models in the main fish finder guide.
Installation Considerations
Side imaging needs a clear left/right view. A motor lower unit, hull step, kayak pedal drive, or poorly angled transducer can block the beam. Read transducer placement before blaming the unit.
Related: fish finder installation guide and value fish finders under $500.
Author Credibility
The Anglers Hub evaluates fishing electronics from a practical angler perspective: what the specs mean on a bass boat, kayak, jon boat, or beginner setup; what features matter for different water types; and where upgrade paths can save money later. We do not claim personal ownership or personal product use of a product unless that information is clearly stated in the article.
Side Imaging vs Down Imaging FAQ
Do I need both side imaging and down imaging?
Not always. Offshore and structure-focused anglers benefit from both; casual beginners may be fine with CHIRP and down imaging.
Which is easier for beginners?
Down imaging is easier to understand because it shows what is below the boat. Side imaging takes more interpretation but covers more water.
Why does side imaging look bad sometimes?
Poor transducer placement, excessive range, blocked beams, speed, and sensitivity settings can all reduce image quality.
Budget imaging rigging
Side imaging needs clean mounting—start with hardware that keeps the transducer in clear water.
Transom Mount Transducer Bracket
Price:Under $20
Adjustable transducer bracket for small boats and jon boats when you need clean sonar water.
- Easy install
- Works with common transducers
- Budget rigging fix
SanDisk Ultra microSD 32GB
Price:Under $12
Map and waypoint storage for Garmin, Humminbird, and Lowrance units that use microSD cards.
- Widely compatible
- Enough space for regional maps
- Inexpensive spare card
As an Amazon Associate we earn from qualifying purchases.
Once you choose the view, learn how to interpret side-imaging returns, shadows, bait, brush, range, and speed with a practical scanning workflow.
