Transducer Placement Guide: Better Sonar Starts With Clean Water

Quick answer: This guide explains transducer placement guide in practical terms, including the key choices, common mistakes, and on-the-water details anglers should understand before the next trip.

Affiliate disclosure: This article contains affiliate links. If you buy through these links, The Anglers Hub may earn a commission at no extra cost to you. Our recommendations are research-based and built from manufacturer specifications, public product information, feature comparisons, pricing/value, installation requirements, upgrade paths, and use-case fit for bass, kayak, and beginner anglers.

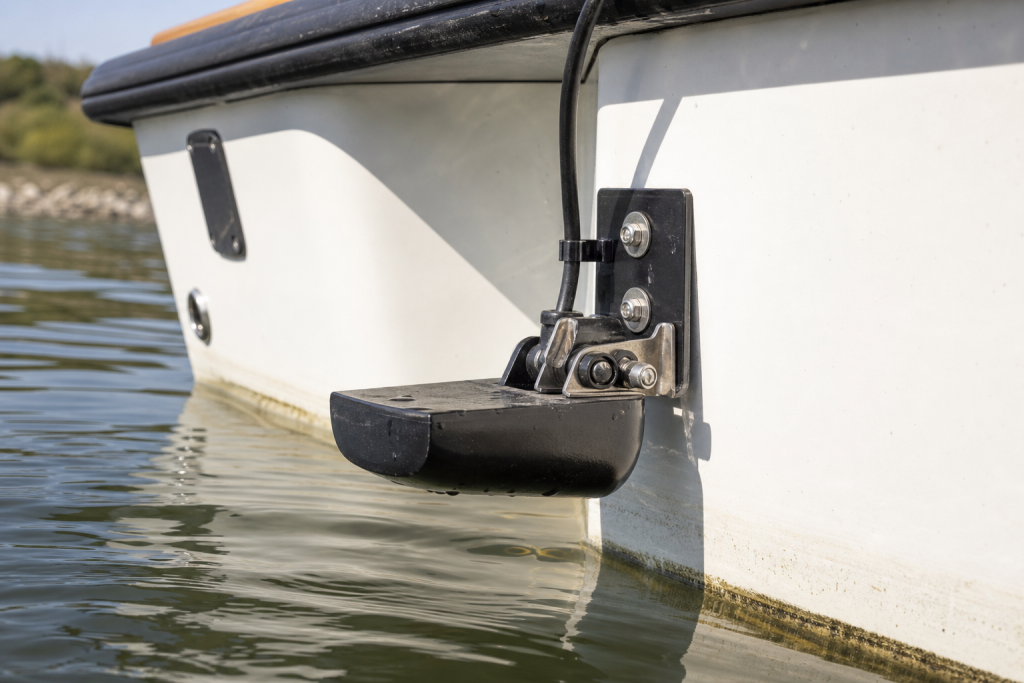

Many disappointing fish finder images come from placement, not the display. A premium unit cannot overcome a transducer mounted in aerated water, angled poorly, or blocked by a motor, hull step, or kayak pedal drive.

Evaluation Methodology

We compared fish finders by screen size, sonar type, mapping support, transducer requirements, installation complexity, power draw, networking and upgrade path, pricing, and suitability for bass fishing, kayak fishing, and beginner anglers. Product recommendations are based on specifications, public product information, feature tradeoffs, and use-case fit rather than undisclosed personal product use.

We evaluated placement advice by sonar type, boat style, kayak fit, beginner difficulty, and how placement affects side imaging, down imaging, and CHIRP returns.

Side Imaging Placement

Side imaging needs clear left and right paths. If the beam hits a motor, hull feature, or kayak pedal drive, one side may look weak or blank. This is why placement matters so much for products in the side imaging vs down imaging category.

Down Imaging And CHIRP Placement

Down imaging and CHIRP are more forgiving, but angle and clean water still matter. If returns look noisy at speed, the transducer may be too high, too low, tilted, or sitting behind turbulence.

Kayak Placement

Kayaks need practical protection. A transducer that works beautifully on the water but hits every ramp and stump will become frustrating. Rail arms are flexible; scupper mounts are cleaner when compatible.

Buying Advice

Before buying a unit such as the HELIX 7 MEGA SI or kayak fish finder, confirm the included transducer can be mounted cleanly on your boat or kayak.

Related: fish finder installation guide and best fish finders for bass.
